Heavy weathertight ship outside doors and hatches

  • toggles made of stainless steel AISI 316, polished
  • maintenance-free hinges with self greased polyamid bushes and stainless steel eccenter bolts
  • lock (AISI 316)
  • angles for toggles (AISI 316) are adjustable after welding
  • cavity rubber seal without sign of fatigue, temperature resistant from -40°C up to 120°C
  • fully insulated , heat transmission coefficient k = 1W/m²K
  • the doors will be delivered ready for welding
  • weight only a third of a steel door
  • on request with angle frame, aluminium- or stainless steel frame
Kunststofftechnik Julitz Heavy weathertight ship outside doors

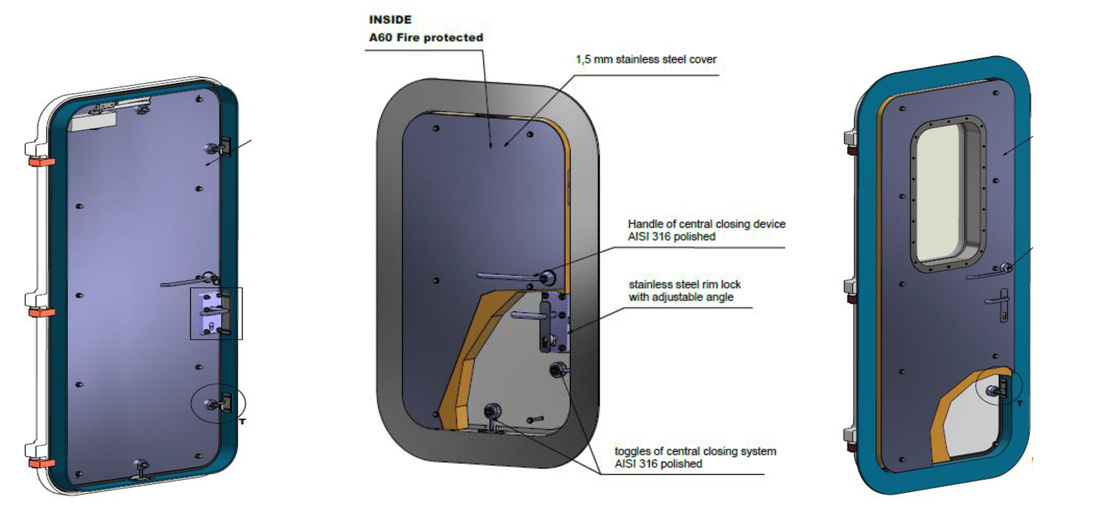

Heavy Weathertight GRP door from outside and Fire rated door from inside



Spraywatertight Double Doors

  • low weight, only a third of a steel door
  • all advantages like our single doors
  • spray watertight (not heavy weathertight)
  • on request with central closing system (AISI 316, polished) inside the leaf
  • very recommended on passenger ships,no injuries possible


Navy Doors and hatches with EMV shield

  • EMV shield based on a carbon layer
  • Safety device for shock resistance
  • Ballistic protection in accordance to DNV-GL requirements


GRP wheelhouse sliding doors

  • each size available on request
  • weight approx. 160 kg incl. frame
  • surrounded steel frame and rubber seal
  • insulated window with aluminium frame inside and outside
  • mortise sliding door lock (brass dull chrome)
  • lock box is adjustable in horizontal and vertical direction
  • door fastener for arrest of leaf in each position
  • very easy assembling, the door will be delivered ready for welding
  • heat transmission coefficient k = 1 W/m²k
  • on request aluminium- or stainless steel frame

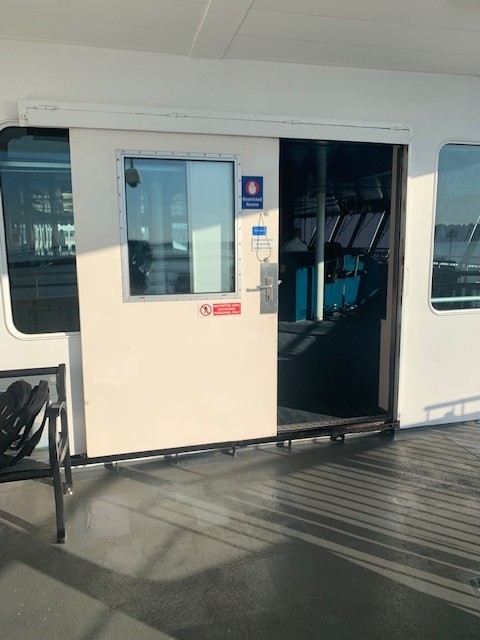

Sliding door straight design



GRP Laboratory Doors

  • guaranteed and certified gas-tightness
  • toggles made of stainless steel AISI 316, polished
  • lock (AISI 316)
  • angles for toggles (AISI 316) are adjustable after welding
  • cavity rubber seal without sign of fatigue, temperature resistant from -40°C up to 120°C
  • fully insulated , heat transmission coefficient k = 1W/m²K
  • the doors will be delivered ready for welding
  • weight only a third of a steel door
  • pre-finished delivery; on request with angle frame, aluminium or stainless steel fram
Kunststofftechnik Julitz GRP Laboratory Doors

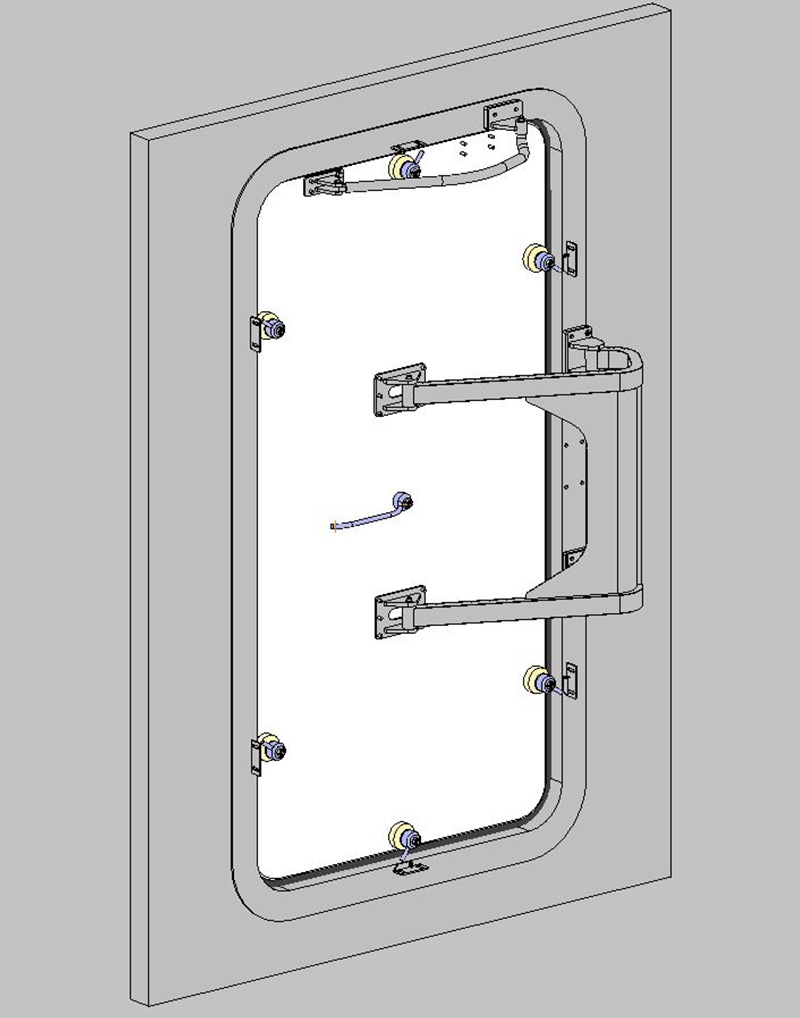

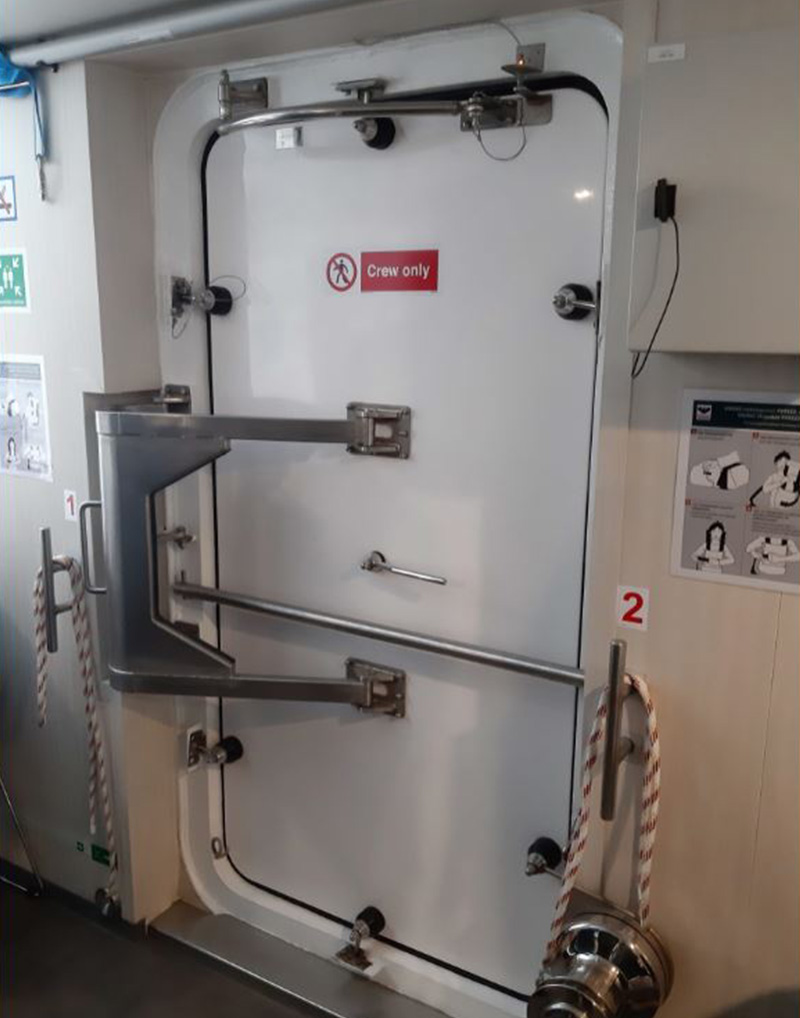

Pantograph Door

  • The heavy weathertight pantograph doors are also available with electrical drive
  • Our integrated central closing system with sic closing points and one handle (AISI 316, polished) prevents any injuries of passengers
  • The door closes flush with the ship's outside
  • In accordance to your requirements we deliver the doors with angle steel-, aluminium-, stainless steel frames
  • Lightweight pantograph doors with electrical drive assembled on fast ferries to olympic games in Sotchi
Pantograph Door
Pantograph Door



Heavy weathertight ship outside doors and hatches

  • toggles made of stainless steel AISI 316, polished
  • maintenance-free hinges with self greased polyamid bushes and stainless steel eccenter bolts
  • lock (AISI 316)
  • angles for toggles (AISI 316) are adjustable after welding
  • cavity rubber seal without sign of fatigue, temperature resistant from -40°C up to 120°C
  • fully insulated , heat transmission coefficient k = 1W/m²K
  • the doors will be delivered ready for welding
  • weight only a third of a steel door
  • on request with angle frame, aluminium- or stainless steel frame
Kunststofftechnik Julitz Heavy weathertight ship outside doors


Heavy Weathertight GRP door from outside and Fire rated door from inside



Spraywatertight Double Doors

  • low weight, only a third of a steel door
  • all advantages like our single doors
  • spray watertight (not heavy weathertight)
  • on request with central closing system (AISI 316, polished) inside the leaf
  • very recommended on passenger ships,no injuries possible


Navy Doors and hatches with EMV shield

  • EMV shield based on a carbon layer
  • Safety device for shock resistance
  • Ballistic protection in accordance to DNV-GL requirements
Kunststofftechnik Julitz - GRP Hatches


GRP wheelhouse sliding doors

  • each size available on request
  • weight approx. 160 kg incl. frame
  • surrounded steel frame and rubber seal
  • insulated window with aluminium frame inside and outside
  • mortise sliding door lock (brass dull chrome)
  • lock box is adjustable in horizontal and vertical direction
  • door fastener for arrest of leaf in each position
  • very easy assembling, the door will be delivered ready for welding
  • heat transmission coefficient k = 1 W/m²k
  • on request aluminium- or stainless steel frame

Sliding door straight design



GRP Laboratory Doors

  • guaranteed and certified gas-tightness
  • toggles made of stainless steel AISI 316, polished
  • lock (AISI 316)
  • angles for toggles (AISI 316) are adjustable after welding
  • cavity rubber seal without sign of fatigue, temperature resistant from -40°C up to 120°C
  • fully insulated , heat transmission coefficient k = 1W/m²K
  • the doors will be delivered ready for welding
  • weight only a third of a steel door
  • pre-finished delivery; on request with angle frame, aluminium or stainless steel fram
Kunststofftechnik Julitz GRP Laboratory Doors


Pantograph Door

  • The heavy weathertight pantograph doors are also available with electrical drive
  • Our integrated central closing system with sic closing points and one handle (AISI 316, polished) prevents any injuries of passengers
  • The door closes flush with the ship's outside
  • In accordance to your requirements we deliver the doors with angle steel-, aluminium-, stainless steel frames
  • Lightweight pantograph doors with electrical drive assembled on fast ferries to olympic games in Sotchi

Handmade in Germany

Your Expert in Glass Fibre Reinforced Plastics




Don´t hesitate to get in contact with our international agencies
